Hybrid Home Energy Solution Bluesun

Hybrid home energy solution Bluesun
Complete system for production, storage and distribution of electric energy contents solar panels, combiner box, hybrid inverter, lithium battery, connection cables, conectors and mounting support. Power from 6 kW to 15 kWh and energety capacitay from 16.2 kWh to 27.13 kWh is intended for smaller objects, typically for family houses.

Hybrid solar system 6 kW

Solar panel BSM440
Panel type:monocrystalline
Maximum power:440 W
Operating voltage:34.8 V
Operating current:12.5 A
Dimensions:1812×1096×30 mm
Weight:21.2 kg
Connecting cables:midship 4 mm², lenght 400 m
Connectors:MC4, 4 pairs
Ambient temperature:-40~85°C
Combiner:1 input, 1 output
Mounting elements (roof or ground):1 set
Number of panels in the set:14 pcs
Total installed power:6,16 kWp
Hybrid Inverter BSE6KL1
Dimensions:550×200×515 mm
Weight:26 kg
Ambient temperature / relative humidity:-25~60°C / 0~95%Rh (no condensation)
Maximum altitude:2000 m
Operating noise:< 35 dB
Cooling:natural convection
Protection:IP65
Transformer:no
Self-consumption:< 3 W
Maximum efficiency DC:97.6%
Charge/discharge efficiency:95.5% / 95%
Display:LCD
EMS communication port:RS485, CAN, LAN, WiFi
AC Output of the Inverter
Maximum apparent power:6000 VA
Rated power:5980 W
Maximum current:26 A
Rated voltage AC (range):230 V (180~280 V)
Frequency:50/60 Hz
Power factor:0.99
THDi:< 3%
THDu:< 2%
Connection:L + N + PE
EPS Output
Apparent power:13.2 kVA
Rated current:19.1 A
Switching time:< 20 ms
Overload:110% - 1 min, 120% - 30 s, 150% - 10 s
PV Input for MPPT
Maximum input power:7000 W
Maximum input voltage:550 V
MPPT input voltage range:125~500 V
Number of MPPT:2
Compatible battery types:lithium-ion, lead-acid
Rated voltage of battery (range):48 V (40~58 V)
Max. charging / discharging power:5510 W / 6300 W
Max. charging / discharging current:95 A / 110 A
BMS interface:CAN, RS485
Battery Module BST-15.0LV
Nominal energy capacity:16.28 kWh
Usable energy capacity:14.65 kWh
Charging cycles:≥ 6000 (0.5C, 25°C)
Rated voltage DC:51.2 V
Discharging voltage range DC:40~48 V
Charging voltage range DC:56~58.4 V
Charging / discharging current:80 A (recommended) 100 A (maximal)
Internal resistance:≤ 30 mΩ
Dimensions:600×400×683 mm
Weight:170 kg
Ambient temperature / relative humidity:-10~50°C / 15~85%Rh (no condensation)
Battery type:lithium-iron phosphate
BMS
Self-consumption:< 2 W (0.1 W stand-by)
Monitored parameters:System voltage, current, cell voltage,cell temperature, module temperature
Communication interface:RS485, RS232, CAN

Print technical data

Roof mounting construction
Roof mounting construction

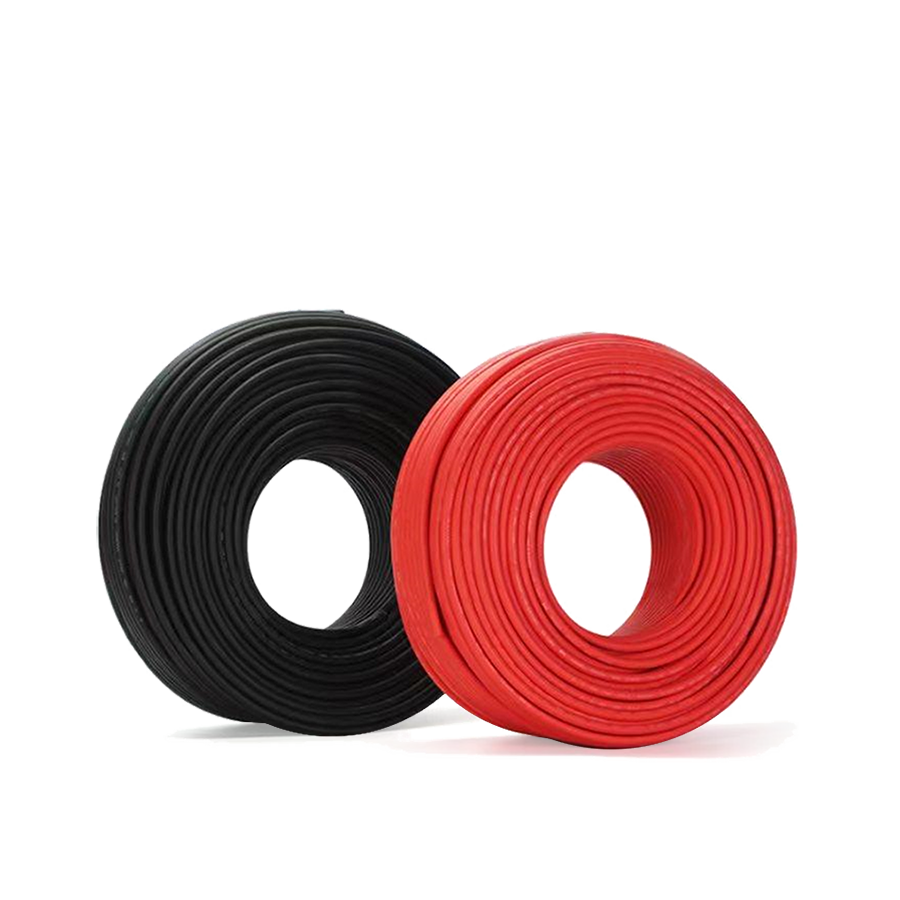

Connecting cables 400 m
Connecting cables

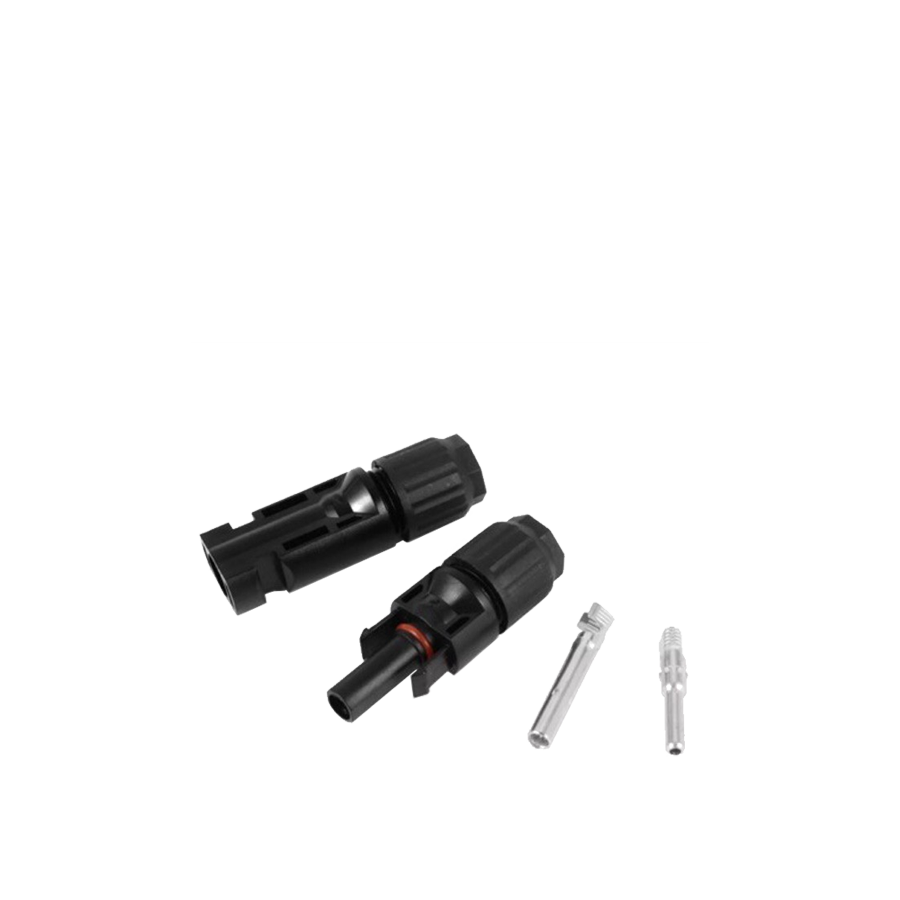

MC4 connectors
MC4 connectors

Hybrid solar system 8 kW

Solar Panel BSM440
Panel type:monocrystalline
Maximum power:440 W
Operating voltage:34.8 V
Operating current:12.5 A
Dimensions:1812×1096×30 mm
Weight:21.2 kg
Connecting cables:midship 4 mm², lenght 600 m
Connectors:MC4, 6 pairs
Ambient temperature:-40~85°C
Combiner:2 input, 1 output
Mounting elements (roof or ground):1 set
Number of panels in the set:14 pcs
Total installed power:8,80 kWp
Hybrid Inverter BSE8KH3
Dimensions:530×200×600 mm
Weight:29 kg
Ambient temperature / relative humidity:-35~60°C / 0~100%Rh (no condensation)
Maximum altitude:4000 m (> 2000 m efficiency decrease)
Operating noise:< 35 dB
Cooling:natural convection
Protection:IP65
Transformer:no
Self-consumption:< 3 W
Maximum efficiency DC:97.9%
Charge/discharge efficiency:97.5%
Display:LCD
EMS communication port:RS485, CAN, LAN, WiFi
AC Output of the Inverter
Maximum apparent power:8.8 kVA
Rated power:8 kW
Maximum current:12.7 A
Rated voltage AC (range):380 V (380~400 V)
Frequency:50/60 Hz
Power factor:0.8
THDi:< 2%
THDu:< 2%
Connection:3×L + N + PE
EPS Output
Apparent power:8.8 kVA
Rated current:12.7 A
Switching time:< 20 ms
Overload:110% - 1 min, 120% - 30 s, 150% - 10 s
PV Input for MPPT
Maximum input power:10.4 kW
Maximum input voltage:1000 V
MPPT input voltage range:180~850 V
Number of MPPT:2
Compatible battery types:lithium-ion, lead-acid
Rated voltage of battery (range):48 V (40~58 V)
Max. charging / discharging power:8 kW
Max. charging / discharging current:50 A
BMS interface:CAN, RS485
Battery Module BST-20.0LV
Nominal energy capacity:21.68 kWh
Usable energy capacity:19.53 kWh
Charging cycles:≥ 6000 (0.5C, 25°C)
Rated voltage DC:51.2 V
Discharging voltage range DC:40~48 V
Charging voltage range DC:56~58.4 V
Charging / discharging current:80 A (recommended) 100 A (maximal)
Internal resistance:≤ 30 mΩ
Dimensions:600×400×832 mm
Weight:215 kg
Ambient temperature / relative humidity:-10~50°C / 15~85%Rh (no condensation)
Battery type:lithium-iron phosphate
BMS
Self-consumption:< 2 W (0.1 W stand-by)
Monitored parameters:System voltage, current, cell voltage,cell temperature, module temperature
Communication interface:RS485, RS232, CAN
Roof mounting construction
Roof mounting construction
Connecting cables 400 m
Connecting cables
MC4 connectors
MC4 connectors

Hybrid solar system 10 kW

Solar Panel BSM440
Panel type:monocrystalline
Maximum power:440 W
Operating voltage:34.8 V
Operating current:12.5 A
Number of panels in the set:22 pcs
Dimensions:1812×1096×30 mm
Weight:21.2 kg
Connecting cables:midship 4 mm², lenght 800 m
Connectors:MC4, 8 pairs
Ambient temperature:-40~85°C
Combiner:2 input, 1 output
Mounting elements (roof or ground):1 set
Hybrid Inverter BSE10KH3
Dimensions:530×200×600 mm
Weight:29 kg
Ambient temperature / relative humidity:-35~60°C / 0~100%Rh (no condensation)
Maximum altitude:4000 m (> 2000 m efficiency decrease)
Operating noise:< 35 dB
Cooling:natural convection
Protection:IP65
Transformer:no
Self-consumption:< 3 W
Maximum efficiency DC:98.2%
Charge/discharge efficiency:97.5%
Display:LCD
EMS communication port:RS485, CAN, LAN, WiFi
AC Output of the Inverter
Maximum apparent power:11 kVA
Rated power:10 kW
Maximum current:15.9 A
Rated voltage AC (range):380 V (380~400 V)
Frequency:50/60 Hz
Power factor:0.8
THDi:< 2%
THDu:< 2%
Connection:3×L + N + PE
EPS Output
Apparent power:11.2 kVA
Rated current:15.9 A
Switching time:< 20 ms
Overload:110% - 1 min, 120% - 30 s, 150% - 10 s
PV Input for MPPT
Maximum input power:13 kW
Maximum input voltage:1000 V
MPPT input voltage range:180~850 V
Number of MPPT:2
Compatible battery types:lithium-ion, lead-acid
Rated voltage of battery (range):48 V (40~58 V)
Max. charging / discharging power:11 kW
Max. charging / discharging current:50 A
BMS interface:CAN, RS485
Battery Module BST-20.0LV
Nominal energy capacity:21.68 kWh
Usable energy capacity:19.53 kWh
Charging cycles:≥ 6000 (0.5C, 25°C)
Rated voltage DC:51.2 V
Discharging voltage range DC:40~48 V
Charging voltage range DC:56~58.4 V
Charging / discharging current:80 A (recommended) 100 A (maximal)
Internal resistance:≤ 30 mΩ
Dimensions:600×400×832 mm
Weight:215 kg
Ambient temperature / relative humidity:-10~50°C / 15~85%Rh (no condensation)
Battery type:lithium-iron phosphate
BMS
Self-consumption:< 2 W (0.1 W stand-by)
Monitored parameters:System voltage, current, cell voltage,cell temperature, module temperature
Communication interface:RS485, RS232, CAN
Roof mounting construction
Roof mounting construction
Connecting cables 400 m
Connecting cables
MC4 connectors
MC4 connectors

Hybrid solar system 12 kW

Solar Panel BSM440
Panel type:monocrystalline
Maximum power:440 W
Operating voltage:34.8 V
Operating current:12.5 A
Number of panels in the set:28 pcs
Dimensions:1812×1096×30 mm
Weight:21.2 kg
Connecting cables:midship 4 mm², lenght 800 m
Connectors:MC4, 8 pairs
Ambient temperature:-40~85°C
Combiner:2 input, 1 output
Mounting elements (roof or ground):1 set
Hybrid Inverter BSE12KH3
Dimensions:530×200×600 mm
Weight:29 kg
Ambient temperature / relative humidity:-35~60°C / 0~100%Rh (no condensation)
Maximum altitude:4000 m (> 2000 m efficiency decrease)
Operating noise:< 35 dB
Cooling:natural convection
Protection:IP65
Transformer:no
Self-consumption:< 3 W
Maximum efficiency DC:98.2%
Charge/discharge efficiency:97.5%
Display:LCD
EMS communication port:RS485, CAN, LAN, WiFi
AC Output of the Inverter
Maximum apparent power:13.2 kVA
Rated power:12 kW
Maximum current:19.1 A
Rated voltage AC (range):380 V (380~400 V)
Frequency:50/60 Hz
Power factor:0.8
THDi:< 2%
THDu:< 2%
Connection:3×L + N + PE
EPS Output
Apparent power:13.2 kVA
Rated current:19.1 A
Switching time:< 20 ms
Overload:110% - 1 min, 120% - 30 s, 150% - 10 s
PV Input for MPPT
Maximum input power:15.6 kW
Maximum input voltage:1000 V
MPPT input voltage range:180~850 V
Number of MPPT:2
Compatible battery types:lithium-ion, lead-acid
Rated voltage of battery (range):48 V (40~58 V)
Max. charging / discharging power:13.2 kW
Max. charging / discharging current:50 A
BMS interface:CAN, RS485
Battery Module BST-25.0LV
Nominal energy capacity:21.68 kWh
Usable energy capacity:19.53 kWh
Charging cycles:≥ 6000 (0.5C, 25°C)
Rated voltage DC:51.2 V
Discharging voltage range DC:40~48 V
Charging voltage range DC:56~58.4 V
Charging / discharging current:80 A (recommended) 100 A (maximal)
Internal resistance:≤ 30 mΩ
Dimensions:600×400×832 mm
Weight:215 kg
Ambient temperature / relative humidity:-10~50°C / 15~85%Rh (no condensation)
Battery type:lithium-iron phosphate
BMS
Self-consumption:< 2 W (0.1 W stand-by)
Monitored parameters:System voltage, current, cell voltage,cell temperature, module temperature
Communication interface:RS485, RS232, CAN
Roof mounting construction
Roof mounting construction
Connecting cables 400 m
Connecting cables
MC4 connectors
MC4 connectors

Hybrid solar system 15 kW

Solar Panel BSM440
Panel type:monocrystalline
Maximum power:440 W
Operating voltage:34.8 V
Operating current:12.5 A
Number of panels in the set:34 pcs
Dimensions:1812×1096×30 mm
Weight:21.2 kg
Connecting cables:midship 4 mm², lenght 800 m
Connectors:MC4, 8 pairs
Ambient temperature:-40~85°C
Combiner:2 input, 1 output
Mounting elements (roof or ground):1 set
Hybrid Inverter BSE15KH3
Dimensions:530×200×600 mm
Weight:34 kg
Ambient temperature / relative humidity:-35~60°C / 0~100%Rh (no condensation)
Maximum altitude:4000 m (> 2000 m efficiency decrease)
Operating noise:< 35 dB
Cooling:natural convection
Protection:IP65
Transformer:no
Self-consumption:< 3 W
Maximum efficiency DC:98.5%
Charge/discharge efficiency:97.5%
Display:LCD
EMS communication port:RS485, CAN, LAN, WiFi
AC Output of the Inverter
Maximum apparent power:16.5 kVA
Rated power:15 kW
Maximum current:23.8 A
Rated voltage AC (range):380 V (380~400 V)
Frequency:50/60 Hz
Power factor:0.8
THDi:< 2%
THDu:< 2%
Connection:3×L + N + PE
EPS Output
Apparent power:13.2 kVA
Rated current:19.1 A
Switching time:< 20 ms
Overload:110% - 1 min, 120% - 30 s, 150% - 10 s
PV Input for MPPT
Maximum input power:19.5 kW
Maximum input voltage:1000 V
MPPT input voltage range:180~850 V
Number of MPPT:2
Compatible battery types:lithium-ion, lead-acid
Rated voltage of battery (range):48 V (40~58 V)
Max. charging / discharging power:13.2 kW
Max. charging / discharging current:50 A
BMS interface:CAN, RS485
Battery Module BST-25.0LV
Nominal energy capacity:21.68 kWh
Usable energy capacity:19.53 kWh
Charging cycles:≥ 6000 (0.5C, 25°C)
Rated voltage DC:51.2 V
Discharging voltage range DC:40~48 V
Charging voltage range DC:56~58.4 V
Charging / discharging current:80 A (recommended) 100 A (maximal)
Internal resistance:≤ 30 mΩ
Dimensions:600×400×832 mm
Weight:215 kg
Ambient temperature / relative humidity:-10~50°C / 15~85%Rh (no condensation)
Battery type:lithium-iron phosphate
BMS
Self-consumption:< 2 W (0.1 W stand-by)
Monitored parameters:System voltage, current, cell voltage,cell temperature, module temperature
Communication interface:RS485, RS232, CAN
Roof mounting construction
Roof mounting construction
Connecting cables 400 m
Connecting cables
MC4 connectors
MC4 connectors
The system configuration can be changed according to requirements. It is possible to add more photovoltaic panels and increase the capacity of the battery storage.
;

© 2023 Radek Klabal, All rights reserved
