Triproof LED luminaires

Triproof Luminaire

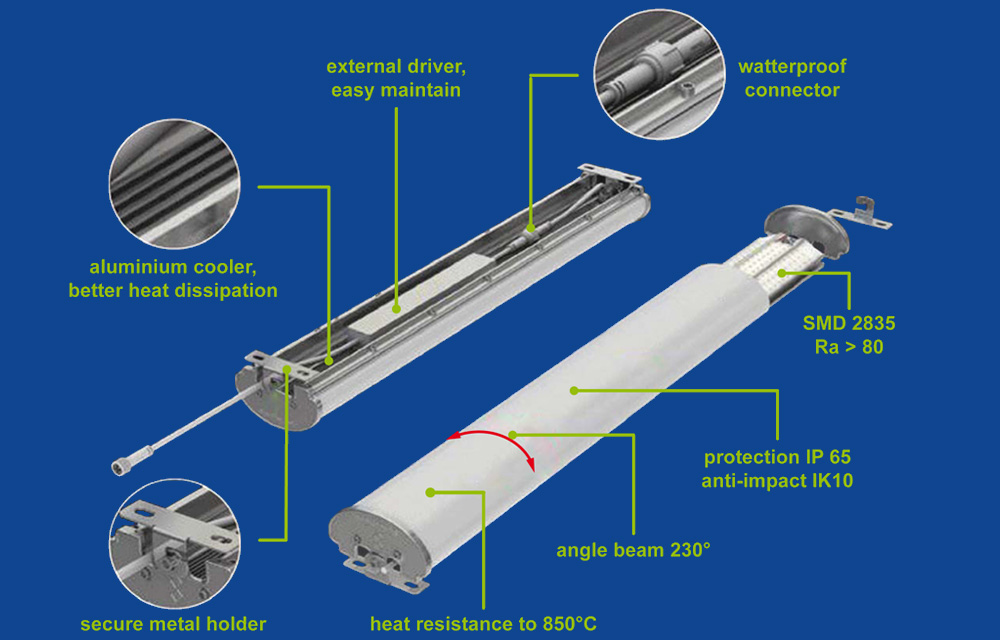

ArcS series Tri-proof light is designed for harsh environment which require waterproof, dustproof, corrosionproof lighting. High waterproof performance is suitable for the wet or dust areas. The cover and the luminaire body withstand the IK10 impact and a temperature up to 850°C. The supply cable can withstand temperatures up to 650°C. PC cover is UV rezistant.
Our industry lamp adopt professional surface treatment, spraying powder, anodized oxidation, hard anodizing. Diffuse cover reduces glare, and with 230° large beam angle, even luminance and elegant appearance, it is an ideal choice for replacing fluorescent lamp source. Up to 150lm/W, this is about 50% energysaving than fluorescent light and the lifetime is much more longer.
Options of your choice:
• Emergency tri-proof lamp with 30% output and working time more than 3 hours
• Dimmable type
• Available with light sensor, motion sensor
• Optional cover IP45
Applications: mining industry, production halls or warehouses of combustibles and explosives, parking lots, tunnels and underpasses, railway and bus stations, supermarkets, etc.
Download:

Two installation options

Ceiling installation
Ceiling installation
Suspended installation
Suspended Installation

Four kinds of connection

Connection No.1: With female and male connector, easy to connect
Connection with female and male connector
Connection No.2: With female and male connector, easy to connect
Connection with female and male connector
Connection No.3: With translucent clutch IP65, consistent light without dark spots in the joints
Fixed connection with translucent clutch IP65
Connection No.4: Cable connection

Cable connection
